Tick in fifteen minutes

Edit a running App and watch each change land: a tab, a different presentation, a new action and a look.

Goal. By the end you have changed Tick (tick/app.ts), a whole to-do App in one file, four times, and checked it the way CI would.

You need Node 24 or newer. Tick ships in the npm package with its seed; it is SQLite, so there is nothing else to install.

1. Start Tick

mkdir tick-try && cd tick-try && npm init -y && npm pkg set type=module
npm install tablewalk typescript
cp -r node_modules/tablewalk/examples/apps/tick ./tick
node node_modules/tablewalk/examples/databases/tick/seed.mjs ./tick.db
npx tablewalk --config ./tick.db.json --app tick --open

Tick is copied out of node_modules because Node does not run TypeScript from there. The seed writes a SQLite database and ./tick.db.json, a writable connection named tick. It refuses to overwrite either, so pick a new path to start over.

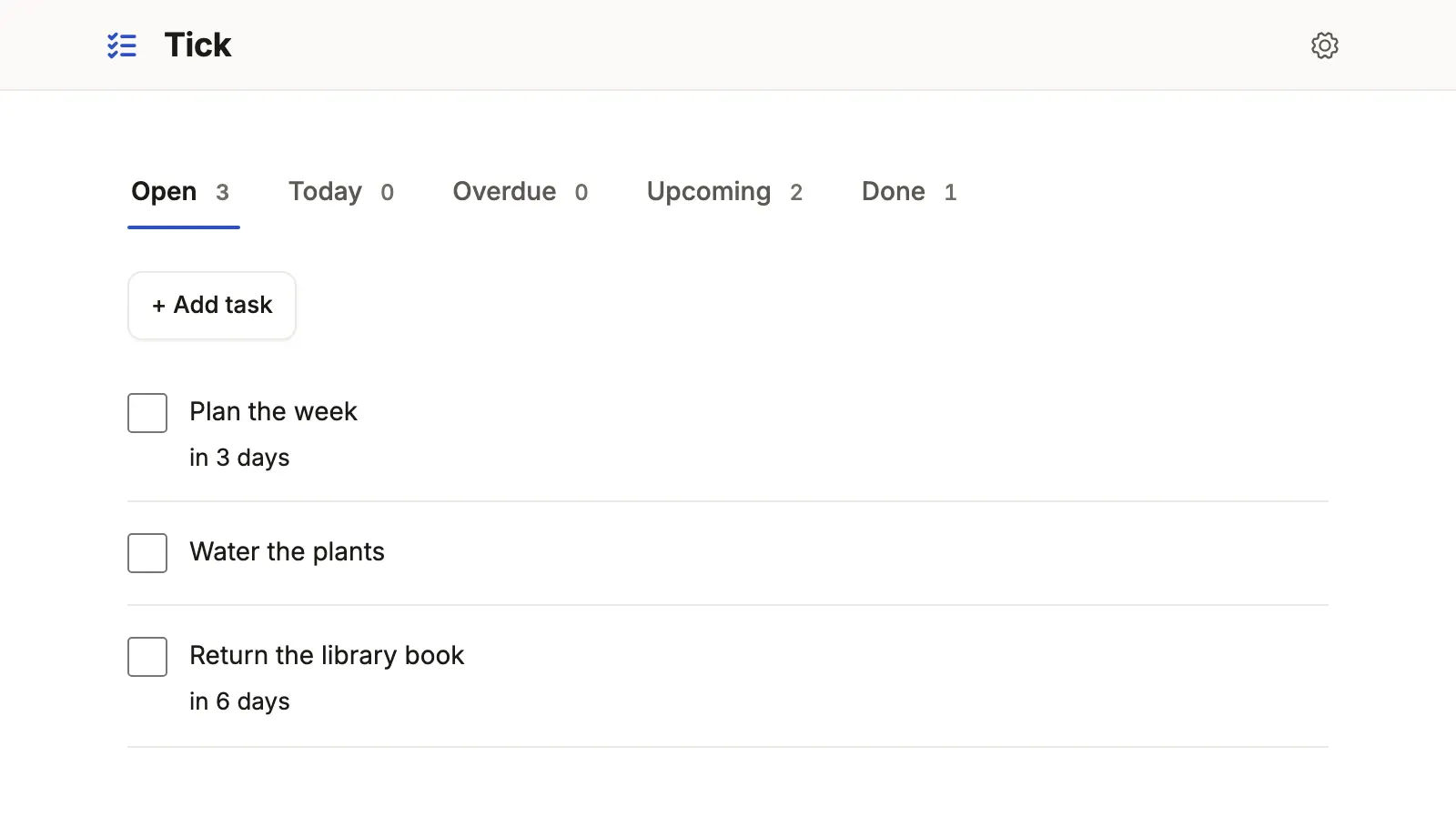

You should now see the picture above: a checklist with counted tabs, and Add task above it. Tick off a task and it moves to Done.

Leave the server running and open tick/app.ts in your editor. Every step below is one edit and a save; the page reloads by itself.

2. Add a tab

A tab names a segment: a condition in the query language, declared once on the resource. Declare one, then name it before Done:

tick/app.ts

    task: {
      segments: {
        // … open, due_today, overdue, upcoming …
        no_date: 'completed = false and due_on is empty',
        done: 'completed = true',
      },

tick/app.ts

      tabs: [
        // … Open, Today, Overdue, Upcoming …
        'no_date',
        { segment: 'done', sort: 'id' },
      ],

You should now see a No date tab with its count. Click it: the address gains ?tab=no_date, so a reload or a shared link opens the same tab.

3. Try another presentation

The view says what Tick’s list looks like with presentation: checklist('name', 'completed', { lines: ['due_on'] }). Comment that line out and save:

tick/app.ts

      // presentation: checklist('name', 'completed', { lines: ['due_on'] }),

You should now see the same rows as a grid, one column for each name in show. A list is a grid unless a presentation says otherwise; cards, a board, a queue, a split and a calendar are the others (lists). Put the line back before going on.

4. Add an action

An action is a button that sets fields. Add a third beside Complete and Reopen:

tick/app.ts

      actions: {
        complete: action('Complete', { set: { completed: true }, when: 'completed = false' }),
        reopen: action('Reopen', { set: { completed: false }, when: 'completed = true' }),
        today: action('Do today', { set: { due_on: { auto: 'today' } }, when: 'completed = false' }),
      },

{ auto: 'today' } is filled in by the server when the button is pressed. when decides only whether the button is drawn.

You should now see, when you open an open task, a Do today button. Press it: the task’s date becomes today, and it appears under the Today tab.

5. Check it

In a second terminal, run what CI would:

npx tablewalk check --app tick --config ./tick.db.json

You should now see passed beside typecheck and validation. Now misspell a column, for example due_onn in the new action, and run it again: the typecheck names the line and asks Did you mean “due_on”?, because Tick’s types say which columns exist. Put it right.

6. Change the look

Add a theme to ui:

tick/app.ts

  ui: {
    logo: 'list-checks',
    theme: { preset: 'mono' },

You should now see Tick in Mono, black and white, where it wore Lumen, the default. Try 'sage'; Looks shows all three.

What you built

You changed an App while it ran: a tab is a query, a presentation is one line, an action is a declared update, and a look is a word. check caught a mistake before a browser did. Tick keeps everything in one file; larger Apps split the same pieces into modules.

Next: the DSL in one App adds the parts Tick has no need for (record pages, roles and a command) on another small sample, or start your own with Quickstart: an App from your database.
